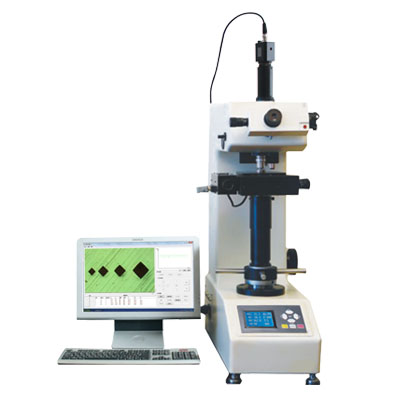

Automatic Macro Vickers Hardness Tester Vexus ZHV-30AZ/50AZ
Vexus ZHV-30/50AZ mainly equipped with precision force loading/unloading
system, auto-turret, LCD display and panel, CCD adapter and camera, PC
system, auto-platform and auto-controlling-measuring-software MV1000.
Vexus ZHV-30/50AZ has two-kinds of measuring model, one is by main
instrument, it is traditional measurement operation; another is by software.
By Vickers measuring software MV1000, all of the operation is by computer
except for the focus-finding manually, which makes the operational step of
hardness testing much easily and simply. Most of important, the auto-software
MV 1000 avoids the human-error and improves the accuracy of measurement.
pecifications:
|
Product Name
|
Auto Macro Intelligent Vickers Hardness Tester
|
|
Model
|
Vexus ZHV-30AZ
|
Vexus ZHV-50AZ
|
|
Code#
|
821-213
|
821-223
|
|
Testing Force
|
Kgf
|
0.3, 0.5, 1,3, 5, 10, 20,30
|
1, 2, 3, 5, 10, 20, 30, 50
|
|
N
|
2.94, 4.90, 9.80, 29.4,
49.0, 98.0,196.1, 294.2
|
9.80, 19.61, 49.0, 98.0,
196.1, 294.2, 490.3
|
|
Indentation Measurement
|
Digital Sensor /Software Measurement
|
|
Auto-turret
|
Auto switch 10x, 20x lens & indenter
|
|
Loading Control
|
Automatic (Loading, Dwell, Unloading)
|
|
Magnification of Microscope
|
Observation:10x; Measurement:20x
|
|
Digital Eyepiece
|
10X Digital Eyepiece
|
|
Dwell Time
|
Adjustable 0～99s
|
|
Auto Hardness Conversion
|
HV convert to HRC and HB
|
|
Auto X-Y Anvil
|
Size:110x110mm;Travel:25mm; Resolution:1um
|
|
Auto X/Y Anvil Movement
|
Motorized by PC measuring software MV 100
|
|
Video System
|
1/3’’ B/W CCD Camera; 1X CCD Adapter
|
|
Measuring Software
|
MV 100
|
|
PC Communication
|
P4: 2.4G, 80G Memory, USB interface and PCI slot,RS232 port
|
|
Max. Height of Specimen
|
220 mm
|
|
Instrument Throat
|
160mm
|
|
Illumination
|
Adjustable LED 6V Cold light-source
|
|
Power Supply
|
AC220V/50Hz;110V/60Hz
|
|
Dimension(LxWxH)
|
260×560×680mm
|
|
Packing Dimension
|
500x490x700mm
|
|
Gross/Net Weight
|
80Kg/55Kg
|
|
Execution Standard
|
ISO 6507，ASTM E92，JIS Z2244，GB/T4340
|
Standard Delivery:
|
Standard Delivery
|
Code#
|
Standard Delivery
|
Code#
|
Standard Delivery
|
Code#
|
|
Vickers Indenter
|
821-403
|
Auto Platform
|
821-703
|
1x CCD Adapter
|
821-363
|
|
HV 1 Hardness Block
|
821-603
|
Flat Precision Clamp
|
821-713
|
1/3’’ CCD Camera
|
484-142
|
|
HV 10 Hardness Block
|
821-623
|
HP 17’’LCD Monitor
|
HP PC
|
Power Cable/Accessories Box
|
821-803/821-903
|
|
10x Digital Eyepiece
|
821-303
|
Measuring Software MV 100
|
823-383
|
Anti-dust Cover
|
821-913
|
|
20X Objective
|
821-323
|
HP 17’’LCD Monitor
|
HP PC
|
Instrument Manual
|
Vexus ZHV-30AZ/50AZ
|
Optional Accessories:
|
Optional Accessories
|
Code#
|
Optional Accessories
|
Code#
|
Optional Accessories
|
Code#
|
|
Unequal Specimen Clamp
|
821-743
|
Filament Clamp
|
821-763
|
Thin-Piece Clamp
|
821-753
|
|
