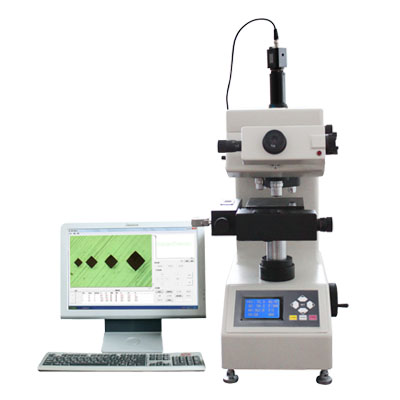

Automitic Micro Vickers Hardness Tester Vexus ZHV-1000V/1000VK
Vexus ZHV-1000V series are automatic micro hardness testing machine
integrate with the technology of optic, mechanism and computer, it is focus on
auto-measuring of Vickers hardness testing under the little precision testing
force, it has the most accuracy indenter repeating system and sharp optical path
to meet the testing application.
Vexus ZHV-1000V series equipped with auto-platform, Vickers measuring
software MV 1000 and PC system, MV 1000 can control the switch of objectives
and indenters, the loading, dwell and unloading of indenter, and it can control
the movement of auto-platform, the users can make the program to realize the
Vickers measurement automatically.
Vexus ZHV-1000V high-tecnology eliminate the measuring error maximally,
and it improves the measuring efficiency and accuracy obviously.
Specifications:
|
Product Name
|
Single Indenter Auto Micro Vickers Hardness Tester
|
Double-Indenter Auto Micro Vickers Hardness Tester |
|
Model
|
Vexus ZHV-1000V
|
Vexus ZHV-1000VK
|
|
Code#
|
825-133
|
825-143
|
|
Testing Force
|
Kgf
|
10、25、50、100、200、300、500、1000
|
|
N
|
0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80
|
|
Indentation Measurement
|
Digital Sensor /Software Measurement
|
|
Indenter
|
HV Indenter
|
HV and HK Indenter
|
|
Lens & Indenter Switch
|
Auto-Turret
|
|
Loading Control
|
Automatic (Loading, Dwell, Unloading)
|
|
Magnification of Microscope
|
Observation:10x; Measurement:40x
|
Observation:20x; Measurement:40x
|
|
Digital Eyepiece
|
Magnification:10x
|
|
Dwell Time
|
Adjustable 0～99s
|
|
Auto Hardness Conversion
|
HV、HRC、HB
|
|
Testing Range
|
5HV~3000HV
|
|
PC Communication
|
P4:2.4G,80G Memory, USB interface and PCI slot, RS 232 port
|
|
Auto X-Y Anvil
|
Size:110x110mm;Travel:25mm; Resolution:1um
|
|
Illumination
|
Adjustable LED 6V, Cold light-source
|
|
Measuring Software
|
Vickers Hardness Measuring and Driven Software MV 100
|
|
Video System
|
1/3’’ B/W CCD Camera; 1X CCD Adapter
|
|
Max. Height of Specimen
|
70mm
|
|
Power Supply
|
AC220V/50Hz;110V/60Hz
|
|
Dimension(LxWxH)
|
490 x250 x395mm
|
|
Packing Dimension
|
530 x450 x750mm
|
|
Gross/Net Weight
|
70Kg/50Kg
|
|
Execution Standard
|
ISO 6507，ASTM E92，JIS Z2244，GB/T4340
|
Standard Delivery:
|
Standard Delivery
|
Code#
|
Standard Delivery
|
Code#
|
Standard Delivery
|
Code#
|
|
Vickers Indenter
|
821-403
|
10x Digital Eyepiece
|
825-303
|
Power Cable
|
825-803
|
|
Knoop Indenter(ZHV-1000VK)
|
825-413
|
Objectives 40x
|
825-343
|
Accessories Box
|
825-903
|
|
Vickers Hardness Block HV 0.5
|
825-623
|
Objectives 10x
|
825-313
|
1x CCD Adapter
|
825-363
|
|
Vickers Hardness Block HV 1
|
825-613
|
X-Y Auto Anvil
|
825*703
|
Instrument Manual
|
Vexus ZHV-1000V
|
Optional Accessories:
|
Optional Accessories
|
Code#
|
Optional Accessories
|
Code#
|
Optional Accessories
|
Code#
|
|
Unequal Specimen Clamp
|
821-743
|
Filament Clamp
|
821-763
|
Thin-Piece Clamp
|
821-753
|
