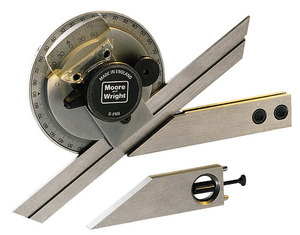

Bevel protractor

Suitable for the measurement and marking out of angles. The Moore & Wright bevel protractor can be set to any angle. An optional acute angle attachment allows the user to quickly measure both wafer thin and broad wedge shaped components.

Complies with BS1685

Features

• Resolution of 5 arc minutes (1/12 degree)
• Fully hardened and ground stainless steel body
• Top mounted adjuster for fine setting whilst the unit is on a flat surface
• Choice of blade lengths
• Locking lever fitted for ease of blade insertion and positive clamping
• Bevelled blade ends to facilitate working in awkward corners
• Scale plate is graduated 0 - 90º - 0, in both directions through 360°
• Satin chrome plated scale for glare free readings
• Magnifying lens for clear easy reading of the flush scale, preventing parallax errors
