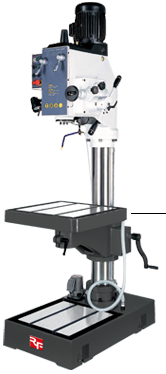

HEAVY DUTY Drilling M/c

Description

• Heavy duty geared head drilling machine , 50mm drill capacity with 200mm of spindle tarvel, 50rpm low speed for heavy drilling.
• Cross work table tilts to  +/-90º and rotates 360º(RF-500C), coolant base system,
• Forward and reverse spindle switch with high and low speeds.
• Cutting Capacity :

• Item	Unit	RF-500S	RF-500C
  Main Motor	HP	4 (3-Phase)
  Speed	rpm	60Hz 60~1810, 50Hz 50~1510 (6 speeds)
  Taper		MT4
  Stroke	mm	200
  Depth	mm	340
  Table Size	mm	600 x 600	820 x 240 (Swivel)
  X Travel	mm	-	460
  Y Travel	mm	-	280
  Column Diameter	mm	Ø180
  No. of T Slot		2	4
  T Slot Size	mm	22 x 35	16 x 26
  Coolant Pump		1 / 8HP
  Packing Dimensions	mm  (L x W x H)	1130 x 740 x 2210	1130 x 1120 x 2210
  Machine Weight	NW/GW	750 / 800 kgs
  		1650 / 1760 lbs

  WORKING CAPACITY
  In Mild Steel (Optional)	Drilling	50mm (2")
  	Face Mill	100mm (4")
  	End Mill	25mm (1")
  	Tapping	33mm (15/16")
  In Light Alloy		50mm (11/2")
