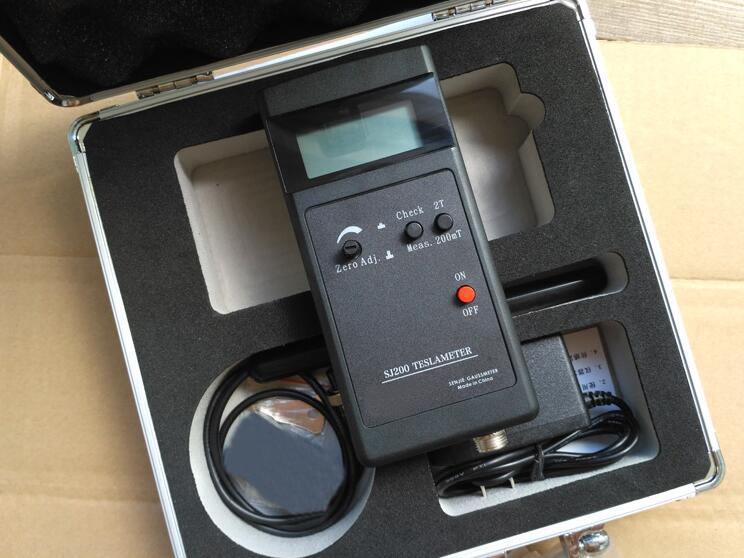

SJ200 Digital Gauss Meter Static Magnetic Field Tesla Tester 0-200Mt-2000mT with Adapter and Carrying Box

Application:

1. SJ200 handheld digital gauss meter, can measure the surface magnetic field of permanent magnetic materials, DC motors, speakers, magnetic separator, permanent magnet magnetic separator working magnetic field.
2. High-precision gauss meter can be used to detect the residual magnetism after machining, detection of magnetic pole distribution, the product after demagnetization residual magnetic field, and control the electroplating magnetic field, magnetic detection of the motor, detection of magnetic field leakage

Feature:

1. SJ200 hand-held digital gauss meter / Tesla meter can be used to measure the DC magnetic field, permanent magnet magnet and other magnetic fields of magnetic induction;
2. Portable Gauss meter can carry a wide range, easy to operate, clear digital LCD display.
3. Portable Gauss meter for a 9V battery power.(battery is not included)
4. Gauss meter measurement Hall sensors can be used with optional vertical and horizontal sensors;
5. A wide range of Gaussian measurement range, clear liquid crystal display, sensor structure is not easy to damage

Parameter:

1. Range: 0 ~ 200mT ~ 2000mT (1mT = 10Gs)
2. Sensitivity: 0.1mT
3. Resolution: 1 Gauss accuracy of 1%
4. Measured magnetic field: DC magnetic field (static magnetic field) Note: Function can be selected according to customer's actual needs
5. T (Tesla) / mT (m Tesla) can be switched
6. ± polar display + north pole (N pole), - South pole (S pole)
7. Environment temperature: 5 ℃ ~ 40 ℃
8. Relative humidity: 20% to 80% (no condensation)
9. Power supply: a 9V battery 9V external power supply
10. Overall dimensions: 160mm × 88mm × 36mm
11. Instrument weight: 300g
12. Display mode: 3 1 / 2LCD
