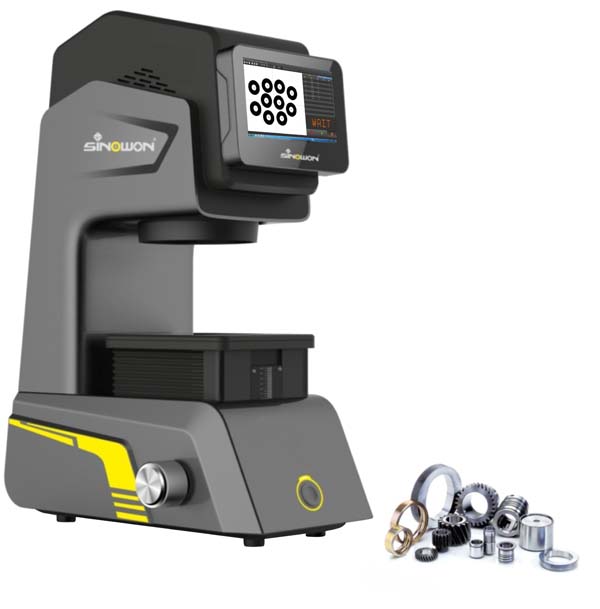

Instant Vision Measuring System iVS-80

Wide Application:

It is widely used in machinery, electronics, mold, injection molding, metal, rubber, low voltage electrical apparatus, magnetic materials, precision stamping, connectors, terminals, mobile phones, household appliances, printed circuit boards, medical equipment, clocks and watches, cutting tool and so on.
Features:
1、Efficient Batch Measurement：
All dimensions can be detected and measured simultaneously and automatically, even the
samples are placed randomly.

● Workpiece Placing——No location and fixture requirements,
anywhere within the effective range of the lens;

● Workpiece Positioning——Automatic location and orientation
correction, automatically detected and measured based on the
recorded shape of the sample;

● Workpiece Focusing——Double telecentric lens,
long working distance, allow height difference;

● Workpiece Measuring——Entire image reduces the
time of import programe, moving worktable and lens.

2、Effectively Eliminate Operator Error：
It ensures that everyone can get the same results.

	Other measuring instruments (Human Error)	Instant Vision Measuring System (Eliminate Human Error)
Measuring Method	The operator is not familiar with the software and the machine	Memory and storage of measurement method, point position and test direction
	Emotion change of operators	Automatic & Mechanization
	Short working distance, repeatedly focusing	Double telecentric lenses, long working distance, allow height difference, no need to repeat focusing
	Different operators,different habits and illumination intensity,different results	Automatically memorize illumination
Specimen Placing	Different positions and directions	Without fixture, any place and direction
	Fixture shift, coordinate origin error	Automatic memory and mechanization
	Point position and measured elements are out of sequence

3、Friendly Operation, Low Costs：
Simple operation, high efficiency, save labor costs.

For example	Other measuring instruments	Instant Vision Measuring System
Save training costs	It takes a long time to learn the instrument operation	One key operation, anyone can operate
Save training costs	Worried about losing skilled operators, resulting in "disconnect"	One key operation, anyone can operate
Lower utility costs	Limited to skilled operators, high salary requirements (1000 USD/month)	Anyone can operate, general workers can meet the equirements (500 USD / month)
Save test efficiency costs	Equipped with 5~10 machines in one production workshop, each equipped with at least one or two skilled operators	Instant Vision Measuring System, one general worker

4、Perfect Accuracy：
Double telecentric lens,low distortion , high accuracy.
● Double telecentric lens, allow the sample height difference, section with slope or curvature and other difficult
measuring elements.

● Low distortion without having to worry about sample placement and blurred focus, and restore the true
dimensions of products, high accuracy.

5、Entire Image：
This is a new measurement system which measures by capturing the entire image of a sample within the field of view.
● Traditional measuring instruments have narrow field of vision, can only test one position at a time, and it requires to move working stage and position specimen before measuring;
● Repeatable steps and more time-consuming and complex to operate;
● Need to consider the accuracy of supporting hardware, such as, linear scales, working stage mounting accuracy, etc.

It can image overall within the maximum range of the
measuring field, measurement of multiple sizes can
be finished at once, greatly improve efficiency,
save time and cost of production.Meanwhile,
it meets customers idea "without mosaic, overall image".

6、Batch Measurement：
Software is for automatic saving shape of specimen, automatic positioning, direction detecting, the coordinate origin for repeated measurements.

● Takes only seconds to measure dozens of position,
99 measurements can be conducted at a time within
the measuring range;

● Simultaneous measurement can be conducted multiple
identical specimens within the perspective.

7、Simple Application：

Convenient applications of measurement data, automatically saves test data and
print test reports and SPC data charts for quality control.

8、Support Reverse Engineering：

Imported DXF files by software can be measured,
graph and data can also be exported from the software for
DXF files for other applications.

Specifications:

Product Name	Instant Vision Measuring System
Model	iVS-30	iVS-60	iVS-80	iVS-160
Lens	0.3X Double Telecentric Lens	0.17X Double Telecentric Lens	0.088X Double Telecentric Lens	0.088X Double Telecentric Lens
Working Distance	110 mm	110 mm	120 mm	160 mm
Wide Field	Ø30mm	Ø60mm	Ø80mm	Ø120mm
Measurement Accuracy	4um	6um	8um	15um
Repeatabilition Accuracy	2um	4um	4um	10um
Camera	2/3’’ 5 million pixel B/W camera (Ethernet)
Illumination	Digital controls, automatic memory
	Telecentric Green LED Contour illumination
	Ring White LED illumination
PC System	DELL (I5 Intel processors)
Monitors	Built-in 10.4 inch LCD Monitorv
	External 21.5 inch LCD Monitor
Measuring Software	iMeasuring 1.0
Measuring Amount	Max.99
Test Time
Output data	Test data, reports, determine the results (OK, NG, WAIT), etc
Function	2D measurements: points, lines, circles, arcs, angles, distance, oval, O-rings, Groove, rectangle, parallelism
Auxiliary Function	Intersection, parallel, perpendicular, tangent, bisection.
Geometric Tolerances	Dimension tolerances and position tolerances, tolerances of form and position (Point position concentricity, straightness, parallelism, roundness, straightness, profile, etc)
Measurement Mode	Manual / Automation
SPC Data Management and Control	√
CAD Data Input / Output	√
Power Supply	AC100~240V，50~60Hz
