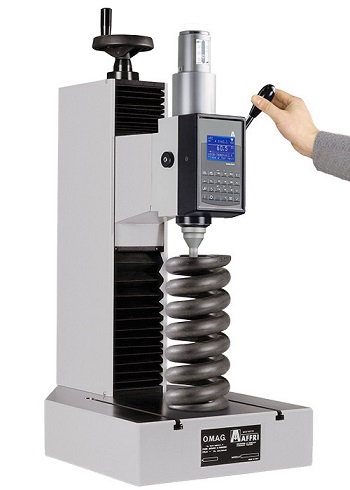

AFFRI 330 RSD / RS-SD

Standard EN-ISO 6506-2 / EN-ISO 6507-2 / EN-ISO 6508-2 / ASTM E-18 / ASTM E-10 / ASTM E384/ JIS
Load forces: from 3 to 187,5 kgf (From 29,42 to 1839 N)

Rockwell ISO 6508 / ASTM E-18: HRA - HRB - HRC - HRD - HRF - HRG - HRL - HRM - HRR  /  HRN - HRT

Brinell HBWT ISO 6506 / ASTM E-10: HB 30 - HB 10 - HB 5 MPa (F/D2)

Vickers ISO 6507 / ASTM E-384 (Only indentation): HV3 - HV10 - HV15 - HV30 - HV60 - HV100
X-Y Table 330x390 mm
Indenter and clamping-hood stroke 0/50 mm
Vertical head stroke 0/300 mm
Depth capacity 190 mm
Preload RSD: 98,1 N (10 kgf) RS-SD: 29,4 (3 kgf)
Force range RSD: Rockwell: 588.4 - 980.7 - 1471 N (60 - 100 - 150 kgf) Vickers (Only indentation): 98.07 - 980.7 N (10 - 100 kgf) Brinell (On request): 98.07 - 612.9 - 1226 - 1839 N - On request 2452 N (10 - 62.5 - 125 - 187.5 kgf - On request 250 kgf)
RS-SD: Superficial Rockwell: 147.1 - 294.2 - 441.3 N (15 - 30 - 45 kgf) Vickers (Only indentation): 29.42 - 294.2 N (3 - 30) Brinell (On request): 153.2 - 294.2 - 306.5 N (15.6 - 30 - 31.2 kgf)
Feasible tests RSD: Rockwell: HRC - HRA - HRD - HRB - HRF - HRG - HRL - HRM - HRR Vickers (Only indentation): HV10 - HV100 Brinell (On request): HB30 - HB10 - HB5 MPa (F/D2)
RS-SD: Superficial Rockwell: HRN - HRT Vickers (Only indentation): HV3 - HV30 Brinell (On request): HB30 - HB10 - HB5 MPa (F/D2)
Accuracy Better than 0.5 %
