Air Booster Max 16 bar (500 L/min)

Good quality Model :AB02-B   2:1 Pressure ratio  maximum16 bar Pressure air booster station with 20

Liters air tank ,2:1 pressure ratio air pressure booster system ,air amplifier system ,air driven booster

system ,Air booster Unit  .

Specifications

Pressure ratio: 2:1
Complete Air Booster Unit
With pressure gauges and air tank
Certificate: ISO9001

                                              Air Pressure Booster

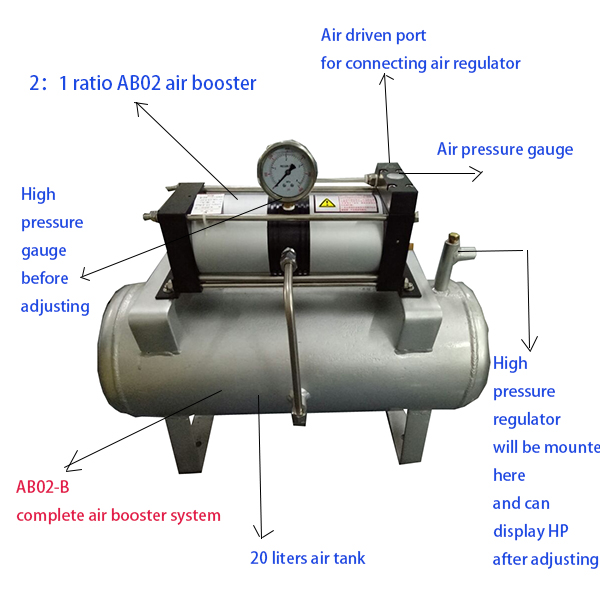

The Air Pressure Booster unit includes model AB02-B and it is a complete pneumatic system designed to pressurize low pressure air/gas to high pressure air/gas. The air booster system can provide a constant outlet pressure.

They feature air pressure booster fitted with an air control unit comprising of a filter, pressure regulator with pressure gauge and an air shut-off valve, and an air tank. So the desired operation pressure and flow can be preset by the means of the air control unit in correspondence with different pressure ratios.

Ideal for use with machines or applications where higher pressure is required than the compressed airline system available.

We can also offer you a choice between a standard Air Pressure Booster System or a customized solution.

Applications

Provide air powered tools and machines in large factories with marginal central air pressure systems

Air pressure boosting in tools for operation of pneumatic clamps, cylinders and many other equipments

Main parameters of AB02-B
